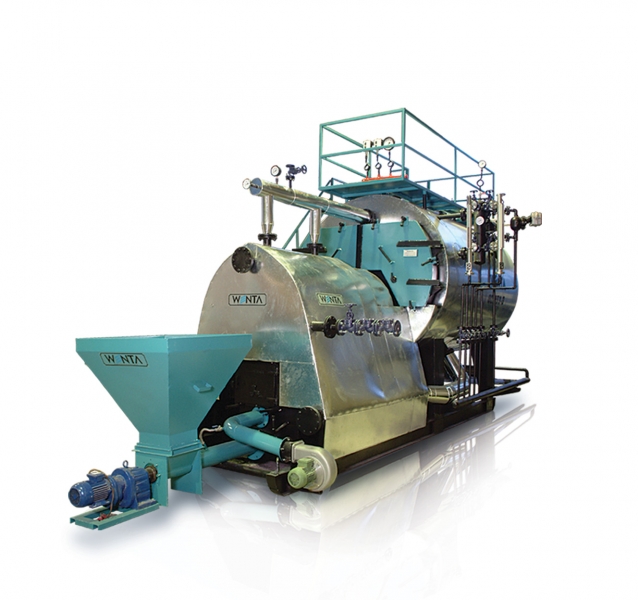

WENTA PRIOR STOVED AND STOCKERED STEAM BOILERS

Product Catalogue
WENTA PRIOR STOVED AND STOCKERED STEAM BOILERS

Product Description

SPECIFICATIONS


  •  Special to wenta, water flowing burning pump.
  •  Ondule toughed, arved mirrored SKOTCH steam furnace.
  •  Pripor stove and skotch steam furnace perfectly applicable.
  •  Burning air fan and chimney fan full automated with invertor.
  •  Designed and produced according to the loyd rules, DIN & EN norms ; optionenally with loyd and  Tuv hydraulic test certificate.
  •  The materials used in production are produced from main sheet iron parts DIN 17155 material with orientationally and guality certificate.
  •  Our furnace pipes in DIN  17175 - 2448 norm are stichless steel pulling high pressured special furnace pipes.
  •  The ISO 9001 Quality system wich are the basis of our qualitiy system are chosen as model of desing / developement, production, facility and service quality.
  •  Equipped with practical holder silicon that is sensible to environment.
  •  Has property of beging able to burn liguid and gas fuel with the brulor assembled on it.



MECHANICAL DUST COAL BURNER SPECIFICATIONS ( STOCKER )


  •  Burn with high productivity all kinds of lignite, dust coal (0,5 -30 mm) hazelhut sheel and apricot seed and the similiars.
  •  Puts the system in very short time when smokeless burning is supplied.
  •  Friend to environment, productivity is high, very easy to manage
  •  Produced in required capacity, easily assembled to the existing stoves
  •  Best solution for the high capacities which are difficult to load with hand
  •  Prevents hurman resourced burning mistakes.
  •  Enables to reach the required capacity with  its high performance with high performance in steam furnaces.
  •  In steam furnaces the control of the system is done with prosestat, stops when the steam pressure is at the required level, it is activated again when the pressure decreases, this work enables prevention of fuel burning unnecessarily.
  •  Supplies fuel saving with respect to gas or liquid fuel up to 70 % saves 30 % with respect to manually loaded fuel.
  •  Burning pump is water flowed.
  •  As there are little number of moving parts in the system, break down probability is low. Burning appicacity is produced from special sheet iron which is tolarable to high temperature.
  •  The assembly and installation of the system is done with our expert teams.



HEATERED PRIOR STOVED STEAM FURNACE


  • Perfect heather and equipment designed by WENTA MACHINE with special purpose.
  • Especially designed for BRIQUET COAL FACILITIES and produces 240°C - 260°C temperatured steam and production is homogenoused.
  • In the same furnace, (while taking 240°C steam from heater) as for melas tank, roll pres etc.
  • Steam is taken at 170°C bar pressure from a different collector, enables to use different pressure and temperature steam.
  • This system is admired loy our clients.
  • Enables unbeliavable easiness in production as the heated steam temperature is continously constant.

Product Dimensions
