WENTA SCOTCH STEAM BOILER

Product Catalogue
WENTA SCOTCH STEAM BOILER

Product Description

TECHNICAL SPECIFICATIONS

  •  Ondule curled, Bombed Mirrored WBKS Series cylinderical structured, three currented, liquid and gosfueled, tire, smoke piped High Pressure Steam Furnaces.
  •  WBKS series High Pressure Steam Furnaces are designed and produced for steam need like for wood, textile, polish, milk, and etc industries and heating of big residence areas.
  •  WBKS Series Furnaces are designed and produced according to TS 337, Lloyd, DIN and EN Norms. Production is carried according to the way you require with Turkish Lloyd and Tüv. All the equipment (Ring Station, Water Treating Device, Economiser..etc. ) you reqire for working industrial in the most productive way are designed and installed in key submitting manner by us. The materials with orientation and quality certificated are produced from main sheet iron parts DIN 17155 material. Our Furnaces pipes are in DIN 17175 2448 norm, unstiched steel pull high presurred furnace pipes.
  •  Can use natural gas and can turn into natural gas. Our Furnaces designed in SKOTCH type are high productive. Our Furnaces are produced with big steam volume so that it can give eligibility to use sudden steam. Water Brokers are put in the furnace to invert the migration of steam and water droplets Burning Cell Dimensions are designed so that it will divert the harmful emissions dirtying the environment and Nox Production. The water-holding nails, condensed entrance, steam exit, surface blof, furnace blof security ventile flanshes, furnace automatic level control and level pointer assembly needing vertical collector are equipped with air flansh with required capacity designed 1 or 2 special design cleaning menhol. The ISO 9001 Quality Systems basis of our quality system, is chosen four design / development, production, facility and service quality management model.
  •  Furnace isolation is done as you require as galvanized iron sheet, aluminium sheet, stainless steel sheet.




Product Dimensions

WENTA SCOTCH
STEAM BOILER
PRODUCT
CODE
HEATING
SURFACE
STEAM POWER
(kg/h)
HEATING CAPACITY
(Kcal/h)
Smoke Paths Resistance
(mmSS)
WBKS25 25 900 540.000 30
WBKS30 30 1100 660.000 30
WBKS35 35 1350 810.000 30
WBKS40 40 1550 930.000 30
WBKS50 50 1900 1.140.000 30
WBKS60 60 2400 1.440.000 40
WBKS70 70 2800 1.680.000 40
WBKS80 80 3200 1.920.000 50
WBKS90 90 3800 2.280.000 50
WBKS100 100 4200 2.520.000 55
WBKS125 125 5200 3.120.000 65
WBKS150 150 6250 3.750.000 65
WBKS175 175 7300 4.380.000 70
WBKS200 200 8350 5.010.000 80
WBKS225 225 9450 5.670.000 80
WBKS250 250 10500 6.300.000 80
WBKS275 275 11500 6.900.000 80
WBKS300 300 12500 7.500.000 80
WBKS350 350 15000 9.000.000 90
*WBKS400 400 18000 10.800.000 90
*WBKS450 450 20250 12.150.000 90
*WBKS500 500 22500 13.500.000 100
*WBKS550 550 24750 14.850.000 100
*WBKS600 600 27000 16.200.000 100

* Double Furnace
Note: Condense Water Inlet is for 70˚C and 6 Bar Working Pressure

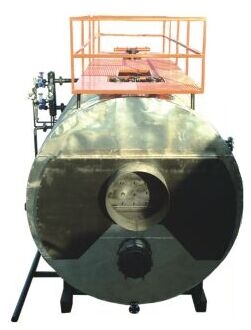

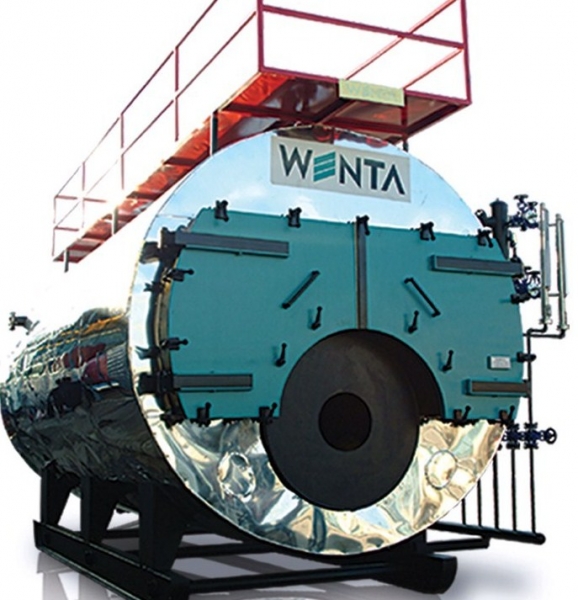

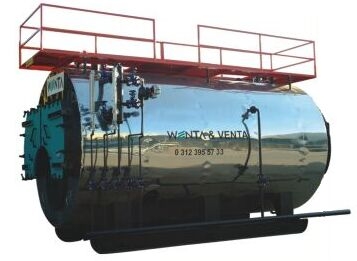

Product Pictures

WENTA SCOTCH STEAM BOILER WENTA SCOTCH STEAM BOILER WENTA SCOTCH STEAM BOILER
