WENTA THERMAL OIL BOILERS

Product Catalogue
WENTA THERMAL OIL BOILERS

Product Description

TECHNICAL SPECIFICATIONS


  • Up to 300 ºС temperature can be obtained at the normal air pressure.
  • The heat transfer fluid does not leave dirty in the pipes and it prevents corrossion
  • There is no risc of freezing of the heat transfer fluid.
  • It provides high temperatures without high pressure in the systems where the high temperatures are needed.



APPLICATION AREAS



  •  Chemistry industry
  •  Textile industry
  •  Painting industry
  •  Packaging ang printing industry
  •  Food industry
  •  Wood industry
  •  Paper industry
  •  Oil recycling industry
  •  Petrochemistry industry
  •  Leather industry
  •  Requirement of steam and hot water.



Note: The oil boilers optionally can be with expansion vessels, thermal oil tank, burner,
circulation pump or pums, control panels and equipments.



Product Dimensions

  WENTA THERMAL OIL BOILER
Capacity Height Length
(wih Burner)
Chimney Outlet Oil Outlet
(Kcal/h) (mm) (mm)  Ø (mm)  Ø (mm)
100.000 950 1590 160 40
150.000 1100 1960 200 50
200.000 1100 2085 220 50
250.000 1100 2120 250 65
300.000 1200 2310 300 65
400.000 1300 2530 320 65
500.000 1420 2760 360 80
600.000 1580 2940 400 80
800.000 1580 3125 460 100
1.000.000 1670 3420 480 100
1.250.000 1900 3820 550 125
1.500.000 2100 4250 610 125
2.000.000 2200 4450 690 125
2.500.000 2300 5110 780 150
3.000.000 2500 5460 870 150
4.000.000 2600 6050 980 200
5.000.000 2865 7095 1100 200
6.000.000 3100 7795 1200 200

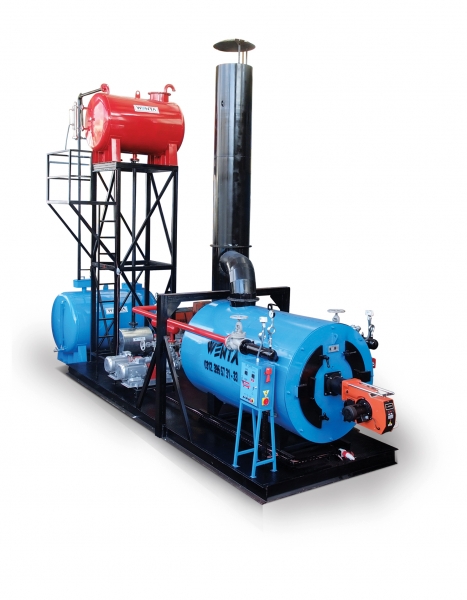

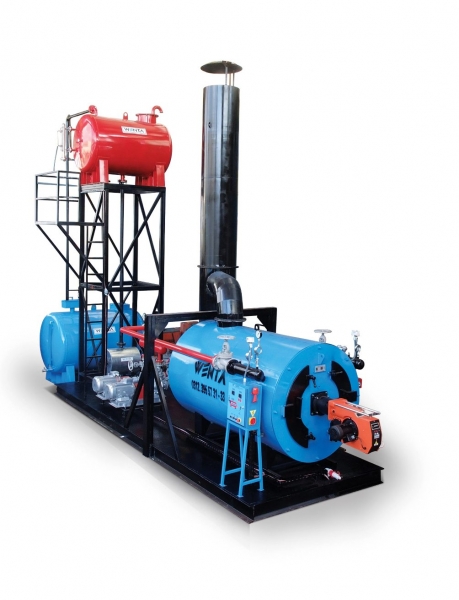

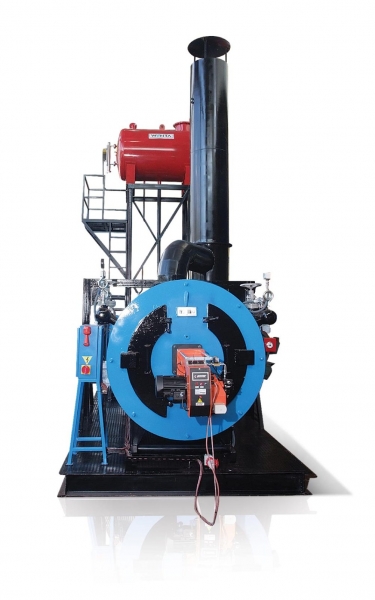

Product Pictures

WENTA THERMAL OIL BOILERS WENTA THERMAL OIL BOILERS WENTA THERMAL OIL BOILERS
WENTA THERMAL OIL BOILERS
